Product introduction
BT-MC89-JK1 is a Bluetooth module integrated with a single-chip Bluetooth baseband processor,offers automotive Grade temperature performance and complies with the Bluetooth v5.4 specification.

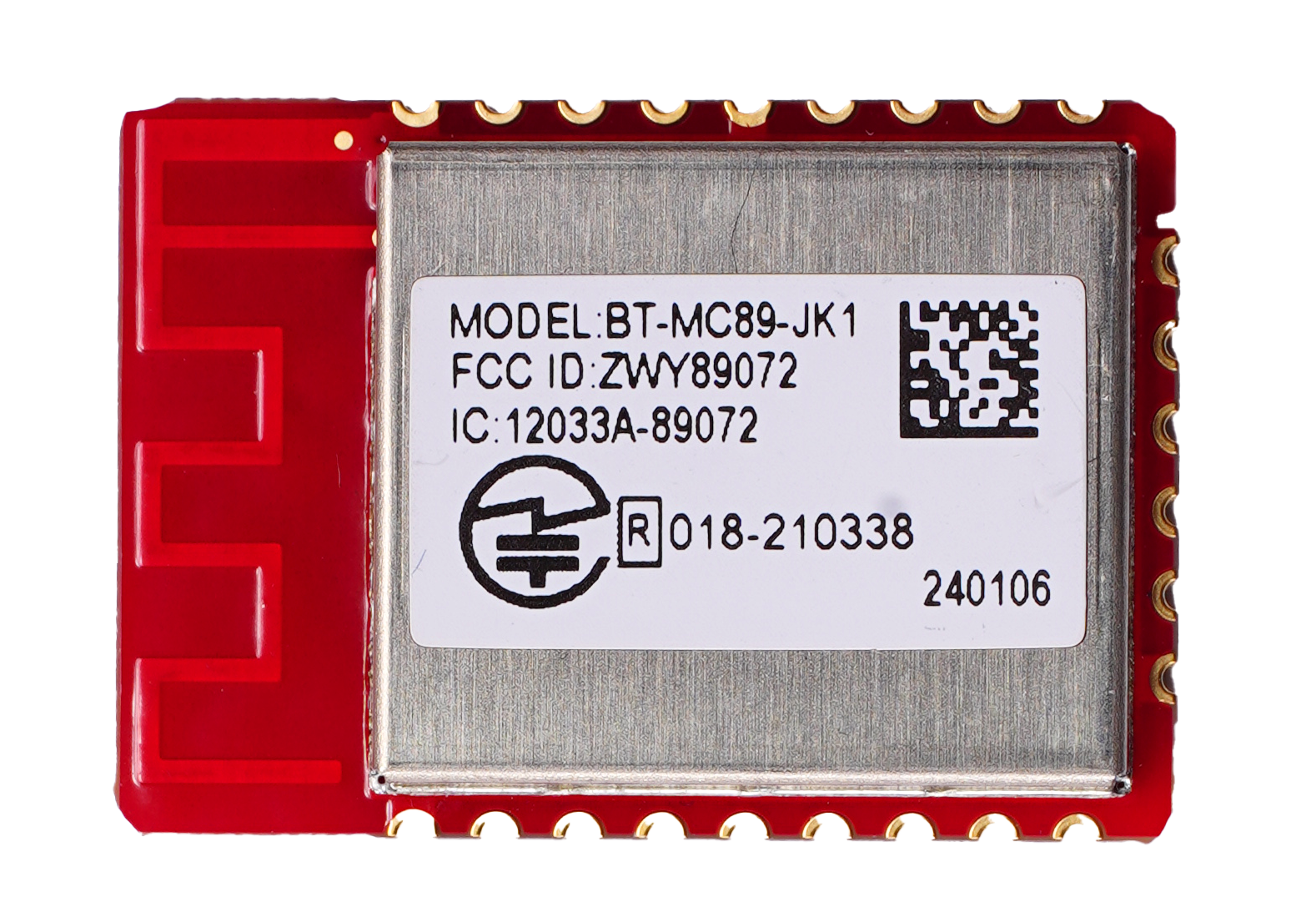

BT-MC89-JK1
Main parameter
•Chipset：CYW89072
•Module dimension(mm)：23*16*3.2mm
•BT Versions:v5.4
•Operating temperature:-40~85℃
•Mac:Single
•Voltage:2.8~3.5V
•Frequency Range(GHz):2.4GHz
•Power class level:Class 2
•Interface:URAT、PCM/I2S
•Application:Automative
•Protocol/features:HCI BT_MODULE A2DP、AVRCP、HFP、HSP、SPP、GATT、PBAP、AEC-Q100
